MT-S300
Mauten
Product Description
Model | S300 | S600 | S1200 | S2000 | S600B | S1000B | S2000B | S3000B | S4000B | |||||
Rated Power | 300W | 600W | 1200W | 2000W | 600W | 1000W | 2000W | 3000W | 4000W | |||||
Peak Power | 600W | 1200W | 2400W | 4000W | 1200W | 2000W | 4000W | 6000W | 8000W | |||||
Input | Input voltage | 12V | 12V | 12V | 12V/24V | 12V-60V | 12V-60V | 12V-60V | 12V-60V | 12V-60V | ||||
Maximum Efficiency | 92% | 92% | 92% | 92% | 90% | 90% | 90% | 90% | 90% | |||||
AC Output | AC Voltage | 110V - 220V | ||||||||||||
Frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | |||||||||||||

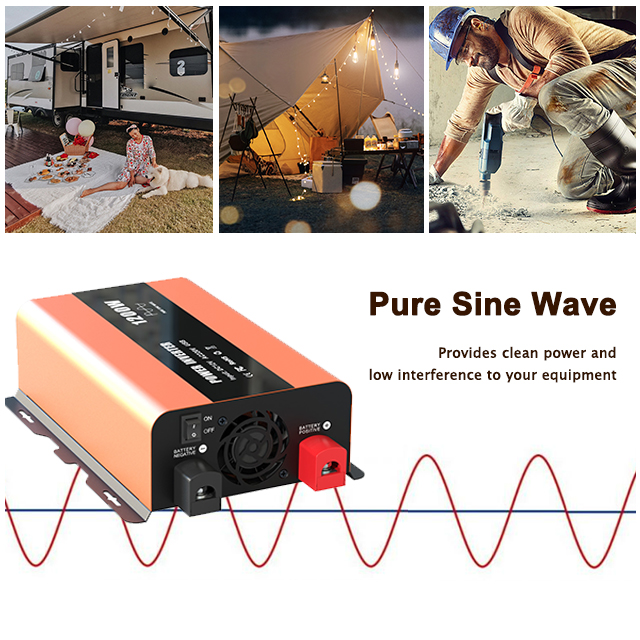

Waveform | Pure Sine Wave | |||||||||||||
USB Port | QC 3.0（18W Max） | - | ||||||||||||
Dimension | 190*151*77 | 210*151*77 | 260*161*82 | 300*191*82 | 265*150*90 | 310*150*90 | 445*175*115 | 480*175*138 | 550*175*138 | |||||
Protection | Temperature, Short circuit, Over current, Over voltage, Reverse connect, Impact, Overload, Low voltage, Battery PTC | |||||||||||||
Socket | US，JP，EU，UK, Universal Socket | |||||||||||||
Applicable batteries | Lead-acid and lithium batteries | |||||||||||||
Operation Environment | Temperature | 0-40℃（32-104℉） | -10~50℃（14-122℉） | |||||||||||
Humidity | 0-80% | |||||||||||||
Customized | Support | |||||||||||||
